Water Filtration & Purification
Commercial & Residential Water Softener and Multi-Media Water Filter

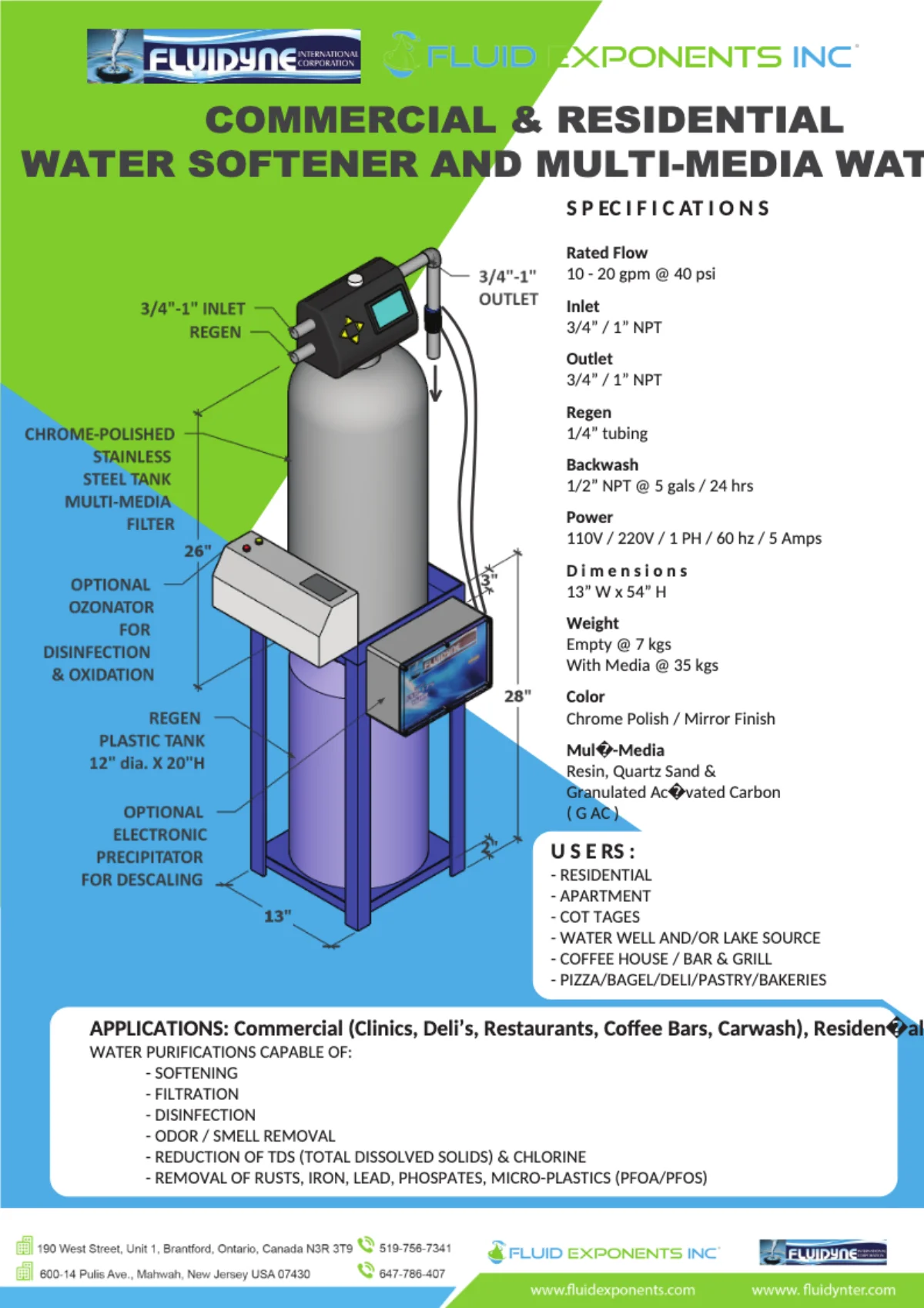

A chrome-polished stainless steel multi-media water filter and softener system for commercial and residential applications. The unit combines resin, quartz sand, and granulated activated carbon (GAC) filtration in a compact 13” W × 54” H form factor with automatic backwash. Rated at 10–20 gpm @ 40 psi, it handles softening, filtration, disinfection, odor removal, TDS and chlorine reduction, and removal of rust, iron, lead, phosphates, and micro-plastics (PFOA/PFOS). Optional ozonator for disinfection/oxidation and optional electronic precipitator for descaling. Suitable for residences, apartments, cottages, water wells, lake-source systems, coffee houses, restaurants, bars, car washes, clinics, delis, and bakeries.
Key Features
- Chrome-polished stainless steel tank construction
- Multi-media filtration: resin, quartz sand, and GAC
- Automatic backwash cycle (5 gal / 24 hrs)
- Softening, filtration, and disinfection in one unit
- Odor/smell removal and TDS/chlorine reduction
- Removes rust, iron, lead, phosphates, and micro-plastics (PFOA/PFOS)
- Optional ozonator for disinfection and oxidation
- Optional electronic precipitator for descaling
- Compact footprint suitable for residential and commercial use
- Dual voltage support: 110V / 220V
Technical Specifications
| Rated Flow | 10–20 gpm @ 40 psi |
| Inlet / Outlet | 3/4” / 1” NPT |
| Regen | 1/4” tubing |
| Backwash | 1/2” NPT @ 5 gals / 24 hrs |
| Power | 110V / 220V / 1 PH / 60 Hz / 5 Amps |
| Dimensions | 13” W × 54” H |
| Weight | Empty: 7 kg / With Media: 35 kg |
| Finish | Chrome Polish / Mirror Finish |
| Multi-Media | Resin, Quartz Sand & Granulated Activated Carbon (GAC) |
| Regen Tank | 12” dia. × 20” H (plastic) |
